Products

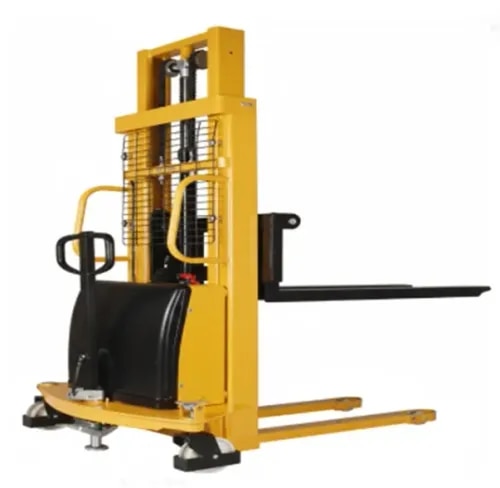

Capacity- 1500KG, 2000KG Lift Hight- 1600mm-3500mm Specification - Lowered Fork Height- 85 mm Fork Length- 900 mm / 1100 mm / 1150 mm Fork Width- 300 – 850 mm (Adjustable) Wheel Type- PU / Nylon Brake- Foot Brake Battery- 12V / 100Ah or 12V / 120Ah Lift Motor- 1.6 kW DC

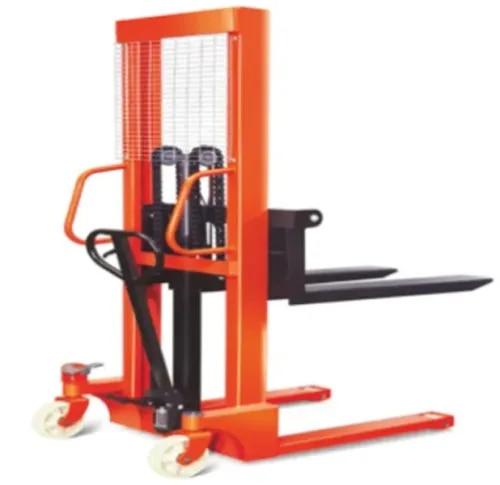

Capacity- 1000KG, 1500KG, 2000KG Lift Hight- 1600mm- 3000mm Specification- Manual Hydraulic Lifting: (hand pump / foot pedal) Fork Length: 900 mm / 1150 mm (Standard) Fork Width: 550 mm – 740 mm (Adjustable) Minimum Fork Height: 85 – 90 mm Wheel Type: PU / Nylon Brake System: Mechanical Parking Brake Safety Features: Overload Valve, Foot Guard, Chain Guard

Capacity - 2000KG Specification -Battery Capacity: 24V / 140Ah (Lead-Acid) Fork Dimensions- 55 x 170 x 1150 mm Minimum Fork Height- 85mm Oveall Length: 2500mm (with Platform) Overall Width: 850mm Specification Battery Capacity: 24V / 150Ah (Lithium) Fork Dimensions: 55 x 170 x 1150 mm Minimum Fork Height: 85mm Oveall Length: 1888mm Overall Width: 738mm

Capacity - 2500KG Specification - Load Center Distance: 600mm Minimum Fork Height- 80mm Oveall Length- 1644 / 1714mm Overall Fork- (Width x Length) 550mm x 1160mm Battery: 48V/20A (Lead Acid)

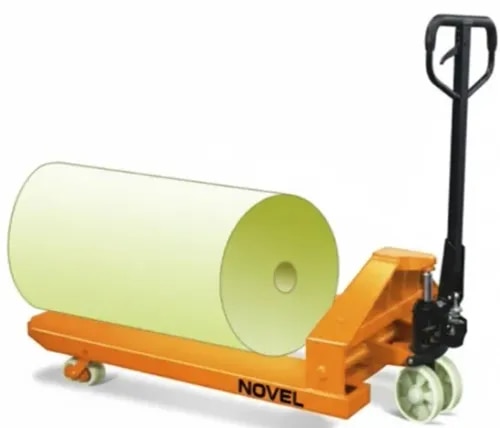

Capacity- 2000KG, 3000KG Specification - Overall Fork: (Width x Length) 550mm x 1150mm Minimum Fork Height: 85 mm Fork Design: V-shape / Curved forks Wheel Type: PU / Nylon Reel Width: 500 mm to 1500 mm

Capacity-1500KG Specification - Overall Fork: (Width x Length) 550mm x 1150mm Minimum Fork Height- 85 mm Wheel Type- PU / Nylon Rollers

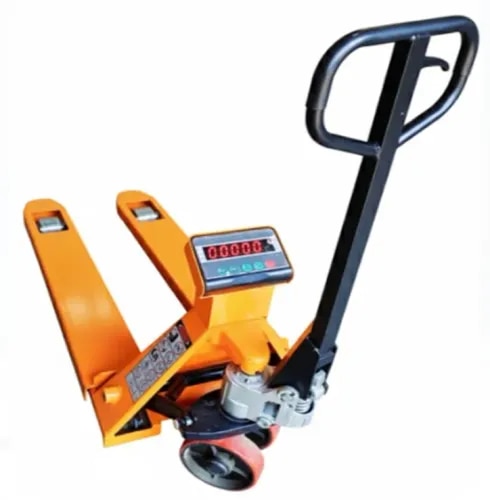

Capacity- 2000KG, 2500KG Overall Fork: (Width x Length) Specification - Overall Fork: (Width x Length) 550mm x 1150mm Weighing Accuracy- ±0.1% to ±0.5% of load.

Capacity - 2000KG, 2500KG, 3000KG, 5000KG Wheel - PU / Nylon Specification - Forkl (Width-Lenght) 550/685x 1150mm Ground Distance - 32mm Turning Redius- 1276mm

Model : 15P-9 Battery Voltage: 48 V Battery Capacity : 230AH/5HR Load Capacity : 1,500 (3,310)kg(lb) Travel Speed (Unloaded) : 10 (6)km/h (mph) Outside Turning Radius : 2,143 (84.4)mm(in)

Impact 502 is a Robust Radio Remote Control with 10 Double Step Operations + Start & Stop. The Rugged design allows this Remote to withstand harsh handling conditions.

Model : 15BRP-9 Battery Voltage : 36V Battery Capacity : 1,085Ah Load Capacity : 1361Kg Load Center : 610mm Max. Lifting Height(STD) : 5,335mm Min. Turning Radius : 1,856mm Travel Speed (Unloaded) : 11.8km/h ※ The specifications above are subject to change without prior notice for quality improvement. ※ The colors in this catalog may be different from actual colors.

The anticollision device is a safety device to avoid collision of two EOT cranes working on the same rails. Working on the principle of retro reflective infrared waves, the arrangement of the transmitter and reflector plate provides on each crane acts as the safety mechanism
