Specification - Capacity * FD70 → 7000 kg Load Centre: 600 mm Lifting Height (Standard): 3000 mm Free Lift * FD70 → 180-218 mm Fork Size: 1220 × 150 × 55 mm Mast Tilt: 6° / 12° Turning Radius * FD70 → 3507 mm Overall Width: 2035-2235 mm Overhead Guard Height: 2460 mm Self Weight * FD70 → 9340 kg Wheelbase: 2250-2340 mm Travel Speed (Laden): 26 km/h Lifting Speed (Laden): 350-460 mm/s

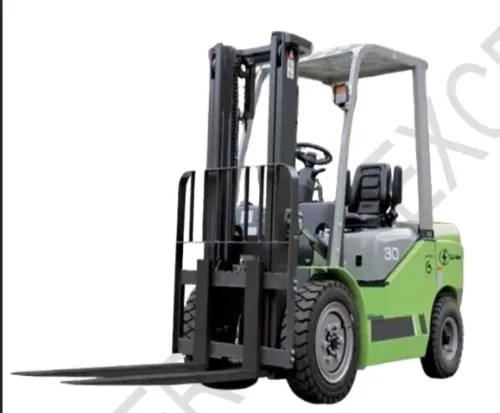

Specification - * Model: 30BE-X (Li-ion) * Type: Electric Counterbalance Forklift * Capacity: 3000 kg @ 500 mm * Battery: 83.2V / 450 Ah LiFePO4 (Li-ion) * Drive Motor: 14 kW * Lift Motor: 16.5 kW * Travel Speed: 14/15 km/h * Gradeability: 15% * Fast charging ≈ 2 hours * Overall Width: 1215 mm * Turning Radius: 2337 mm * Overhead Guard: 2175 mm * Standard Lift Height: 3005 mm * Service Weight: ≈ 4947 kg Key Features * Li-ion battery (no daily maintenance) * Opportunity charging support * Multi-shift capable * IP54 motors (indoor + outdoor) * Anti-roll back * Side battery removal

Specification - * Type: Electric Stand-up Rider Pallet Truck * Capacity: 2000 kg @ 600 mm * Battery: 24V / 240 Ah * Drive Motor: 1.5 kW AC * Lift Motor: 1.2 kW * Travel Speed: 6.1 / 9.0 km/h * Lift Height: 120 mm * Gradeability: Max 8%/20% * Overall Width: 775 mm * Turning Radius: 1550–1820 mm * Service Weight: ≈ 720 kg * Fork: 550 × 1150 mm (std) Key Features * Foldable stand-on platform * Electric Power Steering (EPS) * Turtle mode * Side battery removal * Compact & manoeuvrable

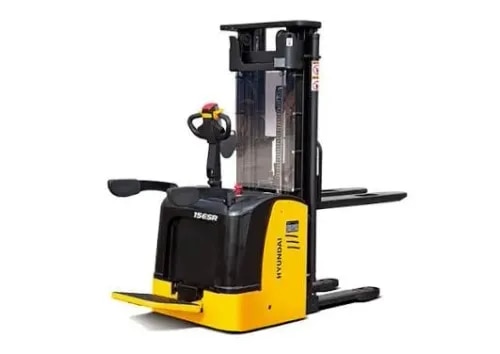

Specification - * Type: Electric Ride-on Pallet Stacker * Capacity: 1500 kg @ 600 mm * Battery: 24V / 300 Ah * Drive Motor: 1.5 kW AC * Lift Motor: 3.2 kW * Travel Speed: 6.0 / 8.5 km/h * Lift Height: 2500–5600 mm * Gradeability: Max 8%/15% * Overall Width: 850 mm * Turning Radius: 1655–1660 mm * Service Weight: ≈ 1280 kg Key Features * Foldable stand-on platform * Electric Power Steering (EPS) * Side battery removal * Automatic speed reduction at height * Proportional hydraulics

* Make / Model: Zoomlion FE30-C * Type: Electric – Electric * Rated Load Capacity: 3,000 kg * Load Centre: 500 mm * Lift Height: 3000 mm * Mast Type: Standard 2 Stage mast * Battery: Lithium-Ion Phosphate battery 76.8/ 303Ah * Charger: 100A charger included * Tyres: Solid tyres * Attachments Included: Forks – 1070 mm / Integrated Side Shifter * Operator Cabin: Enclosed cabin with air conditioner * Warranty: 12 months / 2,000 hours, whichever is earlier * Country of Origin: Import

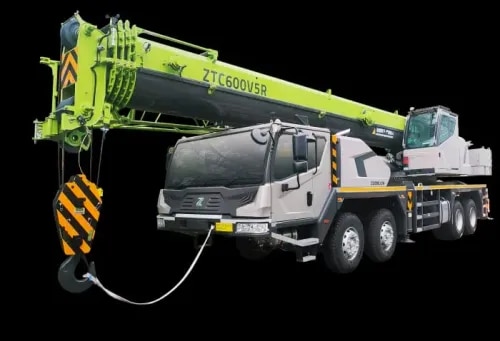

Specification - Max Lifting Capacity: 60 Ton Max Lifting Height (Main Boom): 46.7 m Max Lifting Height (with Jib): 62.5 m Main Boom Length: 11.9 – 46.0 m (5 Section) Jib Length: 9.5 m / 16 m Max Load Moment (Basic Boom): 2009–2107 kN.m Max Load Moment (Full Boom): 1305–1340 kN.m Chassis: 8×4 Engine: Weichai WP10 (~375 HP) Max Speed: 85 km/h Gradeability: 46–50% Overall Dimensions: 14390 × 2800 × 3800 mm Travel Weight: ~47 Ton Outriggers: Longitudinal – 6.05 m Transverse – 7.8 m (full) Hoist Speed: 125–140 m/min Slewing Speed: 0–2.2 rpm

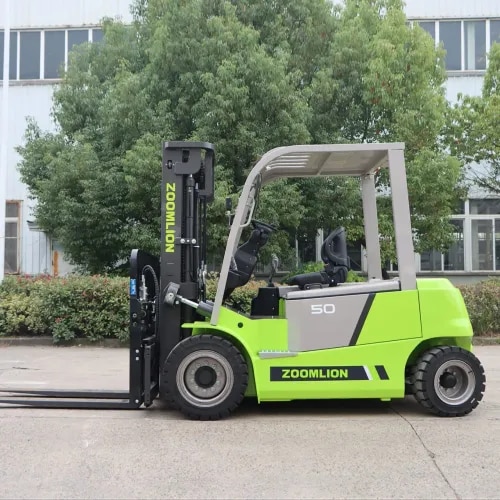

Specification - * Type: Electric – Dual Drive * Rated Load Capacity - 5,000 kg * Load Centre - 500 mm * Lift Height - 3000 mm * Mast Type - Standard 2 Stage mast * Battery - Lithium-Ion Phosphate battery 80.0V/560Ah * Charger - 100A charger included * Tyres - Solid tyres (4 front / 2 rear) * Attachments Included - Forks – 1070 mm / Ram Attachment; Integrated Side Shifter * Operator Cabin - Enclosed cabin with air conditioner * Warranty - 12 months / 2,000 hours, whichever is earlier * Country of Origin - Import

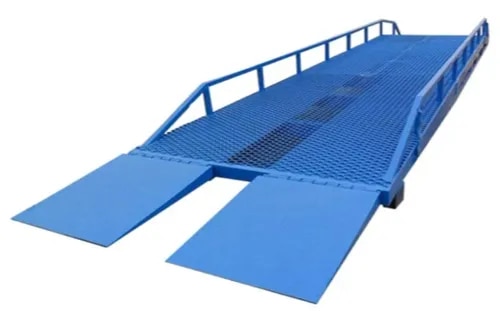

Specification - Ramp length: 6.5m Platform length: 3m Ramp Width: 2m Lip Plate Size Length:2m, width 40 cm, made of 14 mm thick steel plate (placed on the truck) Support slope plate 950mm length 5mm thickness with tubing 150x80mm. Main beam structure 5 pieces of 80×160×4.5 mm rectangular steel tubes Support structure 60×120×3 mm rectangular steel tubes 50×100×2.75 mm rectangular steel tubes Platform surface 3 mm thick checkered steel plateUpper layer covered with steel mesh for anti slip function

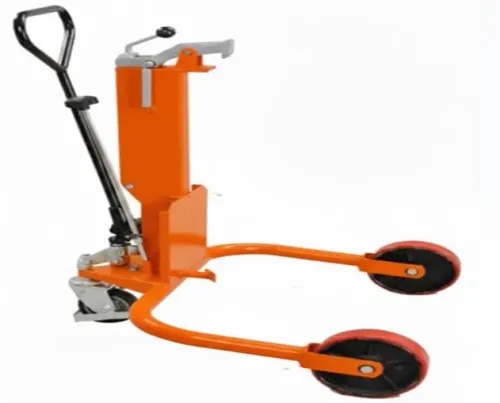

Capacity- 350kg Specification - Drum Grip- Automatic drum grab / beak clamp Wheel Type- Nylon / PU wheels Drum Type- Steel / Plastic Drums (200–210 L)

Capacity- 500KG, 1000KG Lift Hight- 1500mm

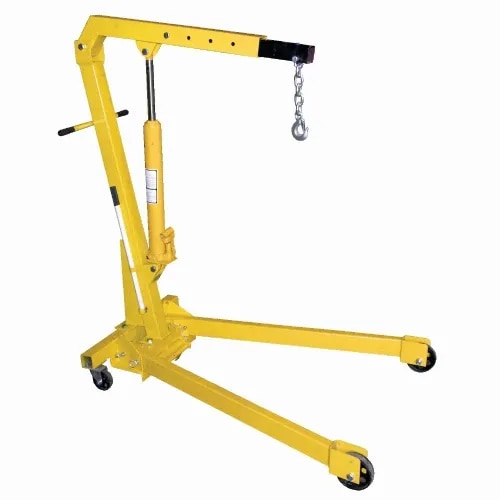

Capacity- 1000KG, 2000KG Specification - Boom Type: Telescopic / Adjustable Boom Extension: 3 Positions Boom Length Range 1040 – 1550 mm (Approx.) Lowest Hook Height 85 – 200 mm Highest Hook Height Up to 2450 mm

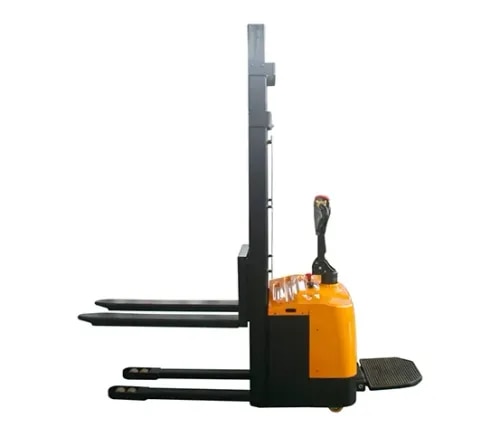

Capacity- 1500KG Lift Hight- 3000mm-4500mm Specification - Fork Dimensions (TxWxL): 60x160x1150 mm Overall Width: 900 mm Fork Outer Width: 685 mm (Adjustable) Drive motor/Lift motor: 1.2 / 2.2 - KW Brake: Electromagnetic Battery: 48V/120Ah
